Interaction Diagrams for Example ATM System

Interaction Diagrams for Example ATM System

UML defines two types of Interaction Diagram: the Sequence Diagram and the Collaboration Diagram. In order to illustrate both types, the major use cases are documented using Sequence Diagrams, and the specific subcases of transaction (withdrawal, etc.) and the Invalid PIN Extension are documented using Collaboration Diagrams. (The major reason for using two different types of diagram is pedagogical - to illustrate each type.)

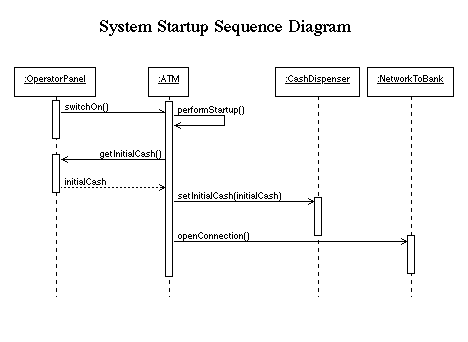

Sequence Diagram for System Startup Use Case

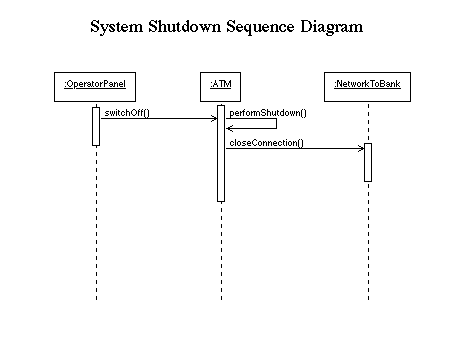

Sequence Diagram for System Shutdown Use Case

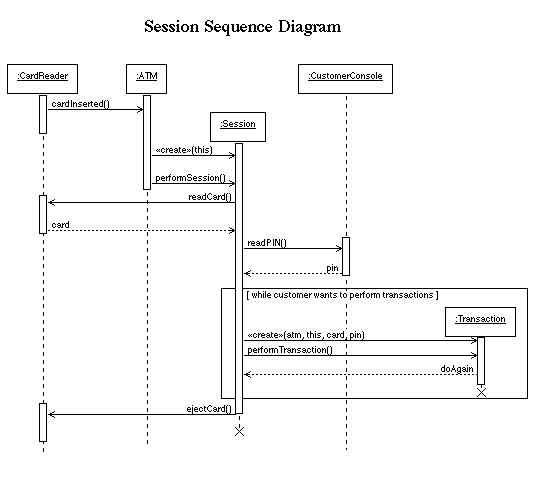

Sequence Diagram for Session Use Case

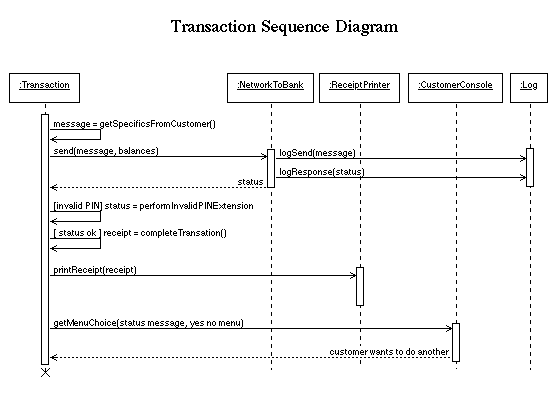

Sequence Diagram for Transaction Use Case (Since transaction is abstract, this gives the overall flow of a transaction. See the interactions below for specific concrete cases.)

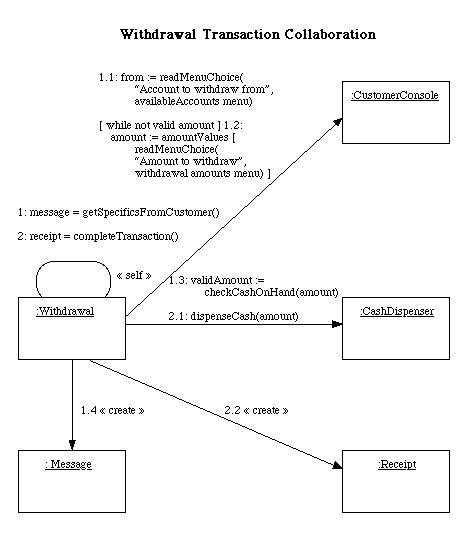

Collaboration realizing specifics of Withdrawal Transaction Use Case
Collaboration realizing specifics of Deposit Transaction Use Case

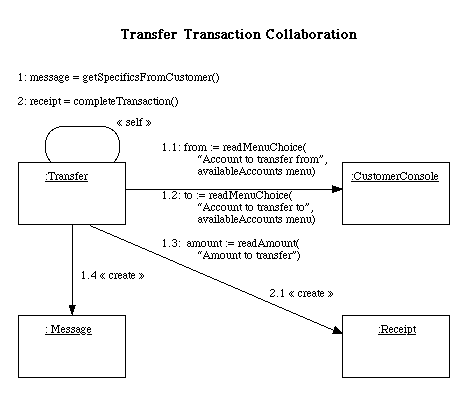

Collaboration realizing specifics of Transfer Transaction Use Case

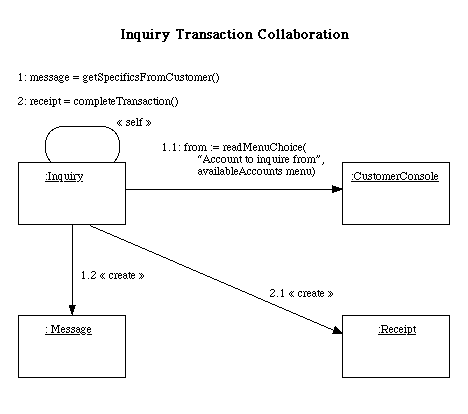

Collaboration realizing specifics of Inquiry Transaction Use Case

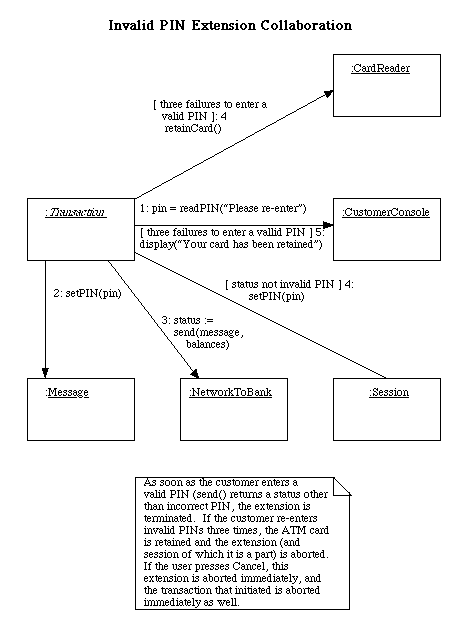

Collaboration realizing Invalid PIN Extension

[ Interaction for system startup ]

[ Interaction for system shutdown ]

[ Interaction for a session ]

[ Interaction for a transaction ]

[ Interaction for specifics of a withdrawal transaction ]

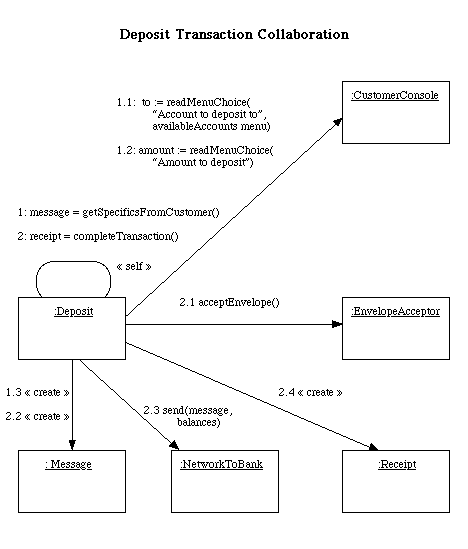

[ Interaction for specifics of a deposit transaction ]

[ Interaction for specifics of a transfer transaction ]

[ Interaction for specifics of an inquiry transaction ]

[ Interaction for invalid PIN extension ]
